Kestrel Mine Extension - AM05 & AM07 Winches
| Project Ref: | 43525 |
| Client: | Rio Tinto |
| Project: | Kestrel Mine Extention |
| Scope: |

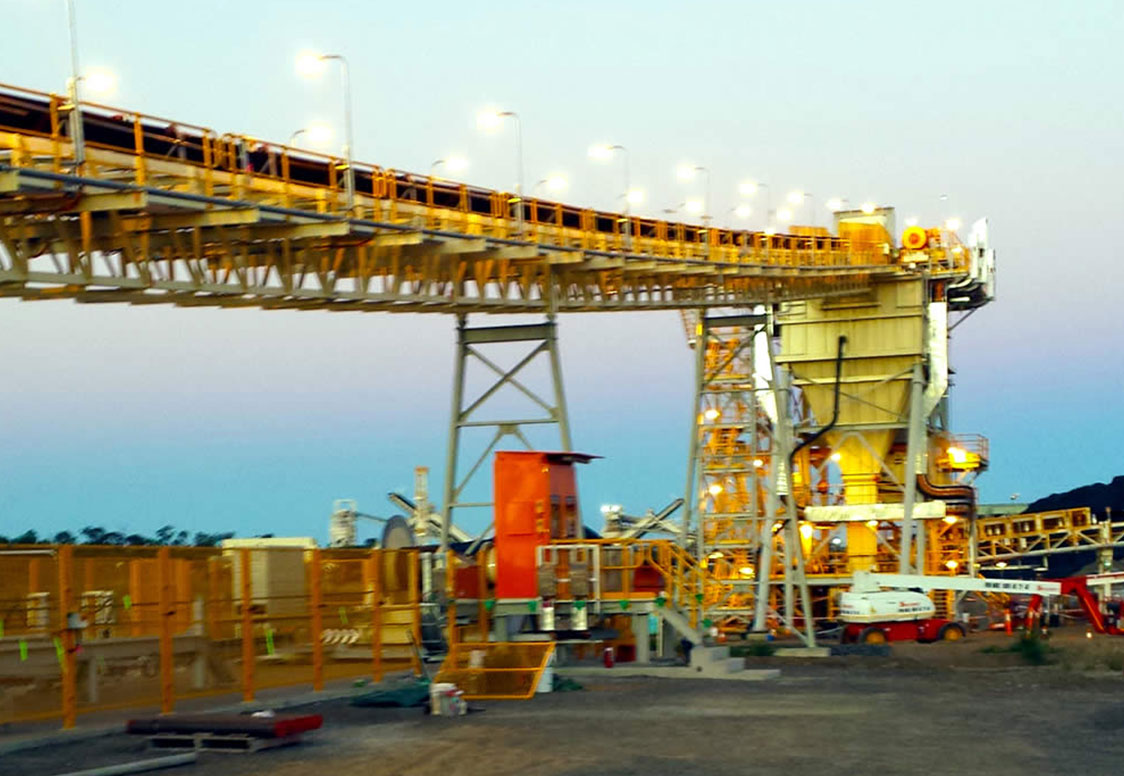

Overland Conveyor Winch System |
Highly engineered high performance winch capable of operating at high torques in dusty and corrosive environment. Winch shall maintain and monitor the rope's tension for compliance with running/starting/stoping operational belt tensions.
| Manufacturer................................... | Eilbeck Cranes |
| Year of Manufacturing................. | 2012 |
| Winch Capacity............................... | 60 KN |
| Winch Starting Tension................ | 160.0 KN |
| Line Speed........................................ | 24 m/min |
| No of drum....................................... | 1 |
| Rope Diameter................................ | 32 mm |
| Rope Construction......................... | QS816 V - 1960 MPA |
| Rope Breaking Strength.............. | 957 KN |
| Rope static factor........................... | 5.9 |
| Rope Drum active storage.......... | 36 m |
| Gear Box............................................ | Bonfiglioli 3 18 L 1 4.4 FP GOA A + HDO 130 3 34.9 H L 1 G 280 B3 |
| Motor................................................. | WEG |
| Motor Power.................................... | 110 KW |

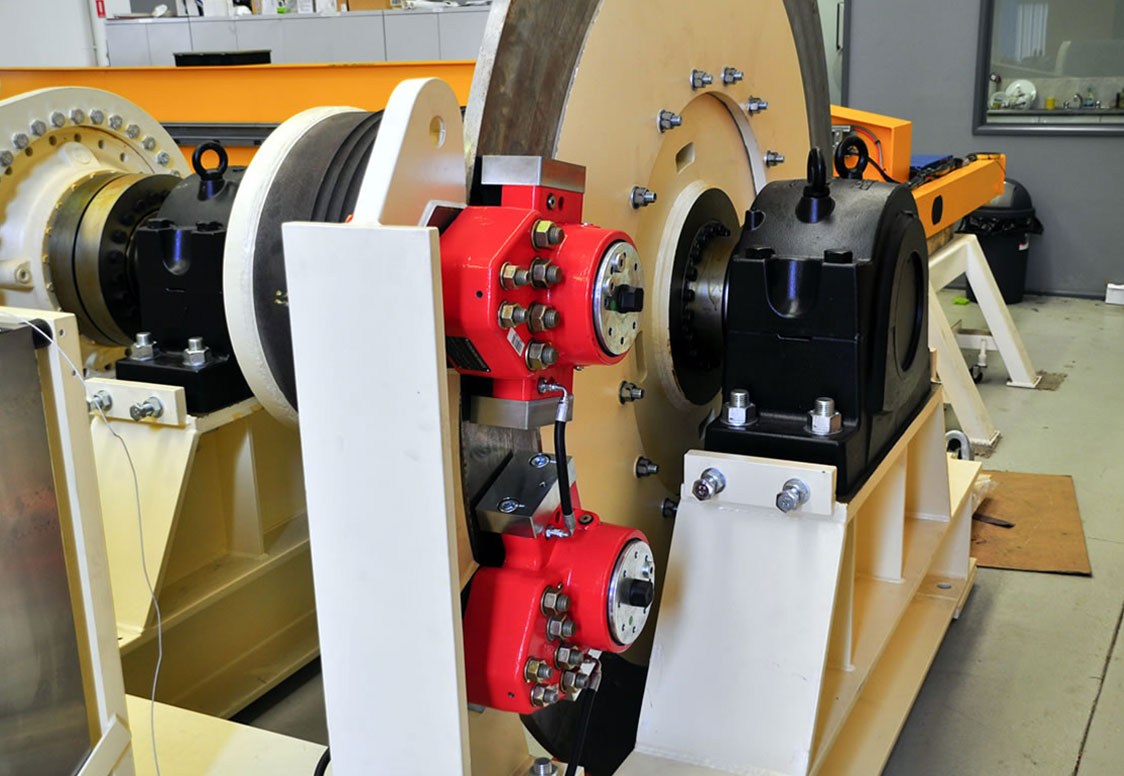

| Brake Torque.................................... | Hydraulic Fail Safe |
| Weight Approx................................ | 9150 |
