15t Man Riding Winches
| Project Ref: | 70244 |
| Client: | SRG Civil Pty Ltd |
| Project: | 2 off 15t Man Riding Winches |
The Eilbeck Cranes winch team in Sydney Lancaster Machine Shop has successfully manufactured these winches for Kangaroo Creek Dam in Adelaide South Australia.

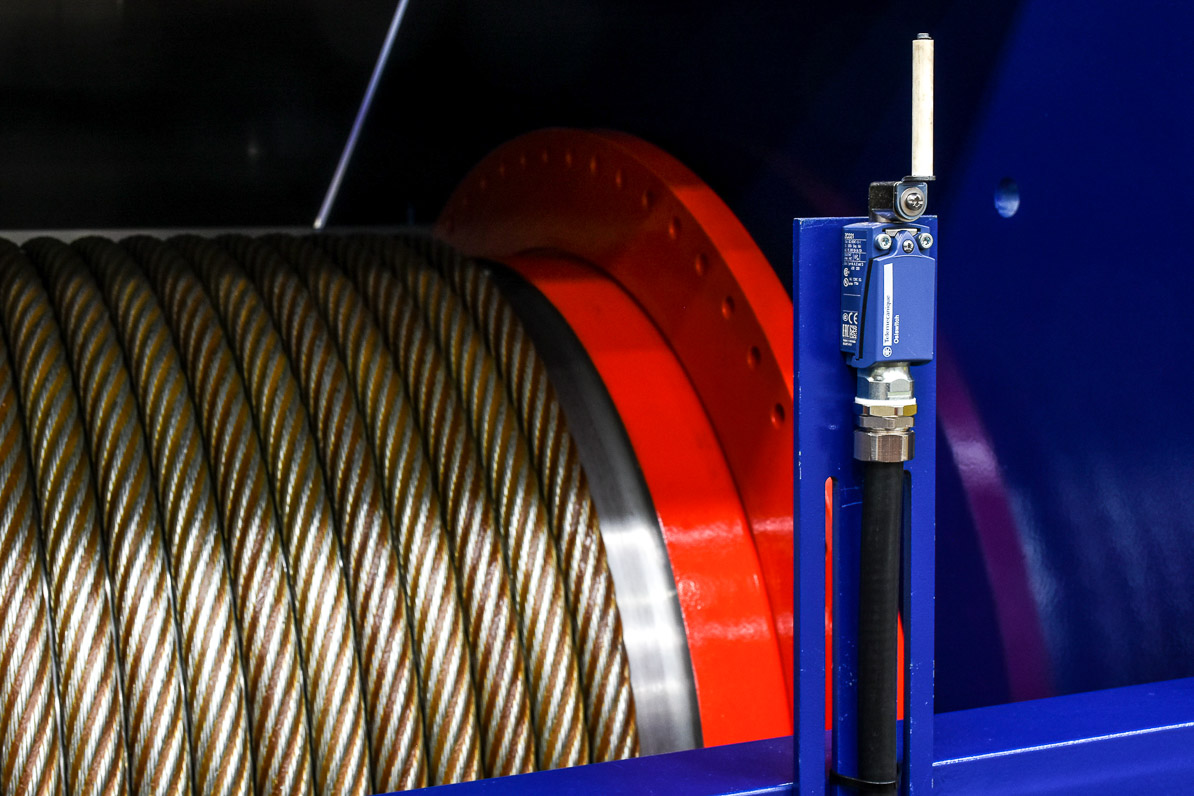

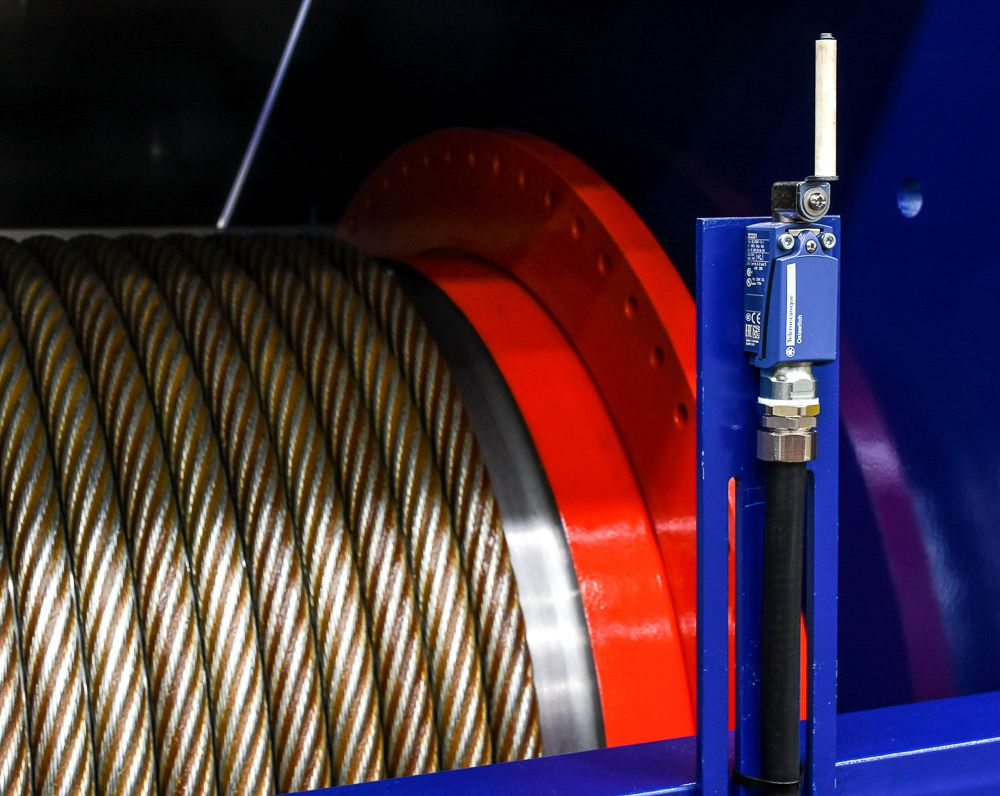

The winches are special man riding winch used to pull slip form and finishing platform with people riding on it. These 15t winches have 80m active ropes on the drum and 100m overall rope length.

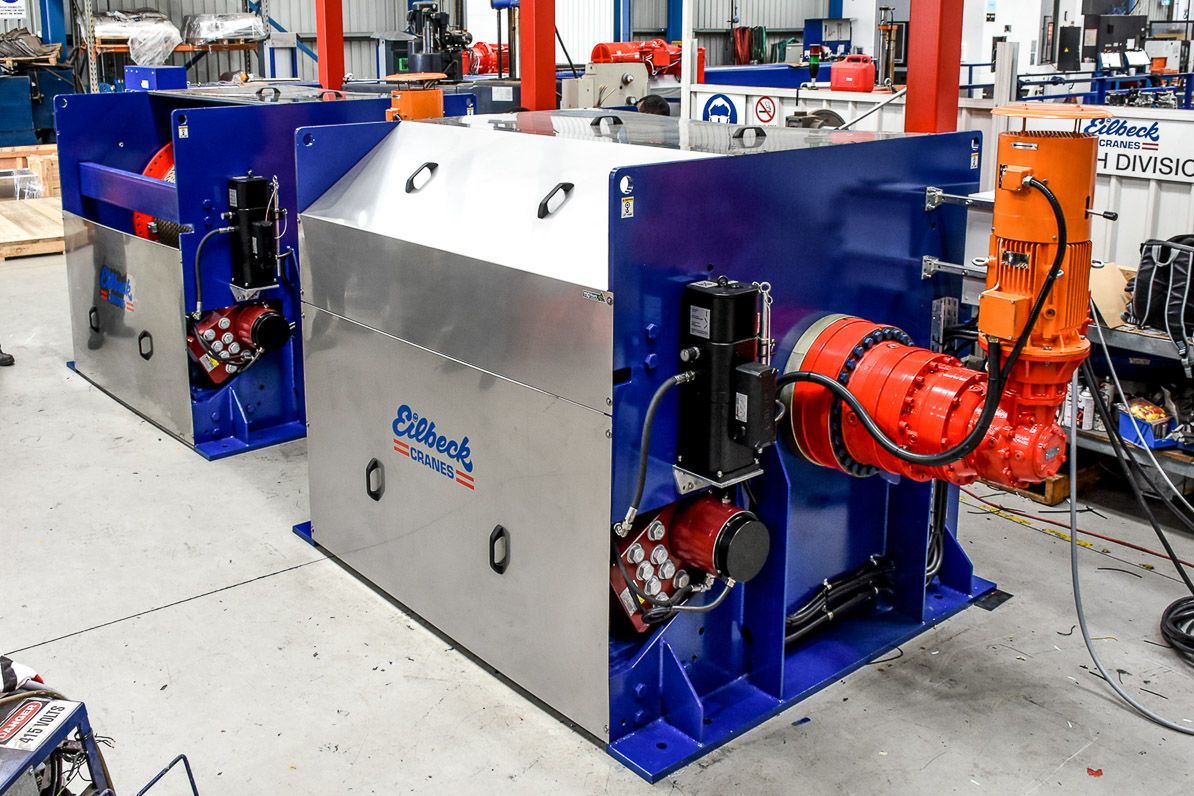

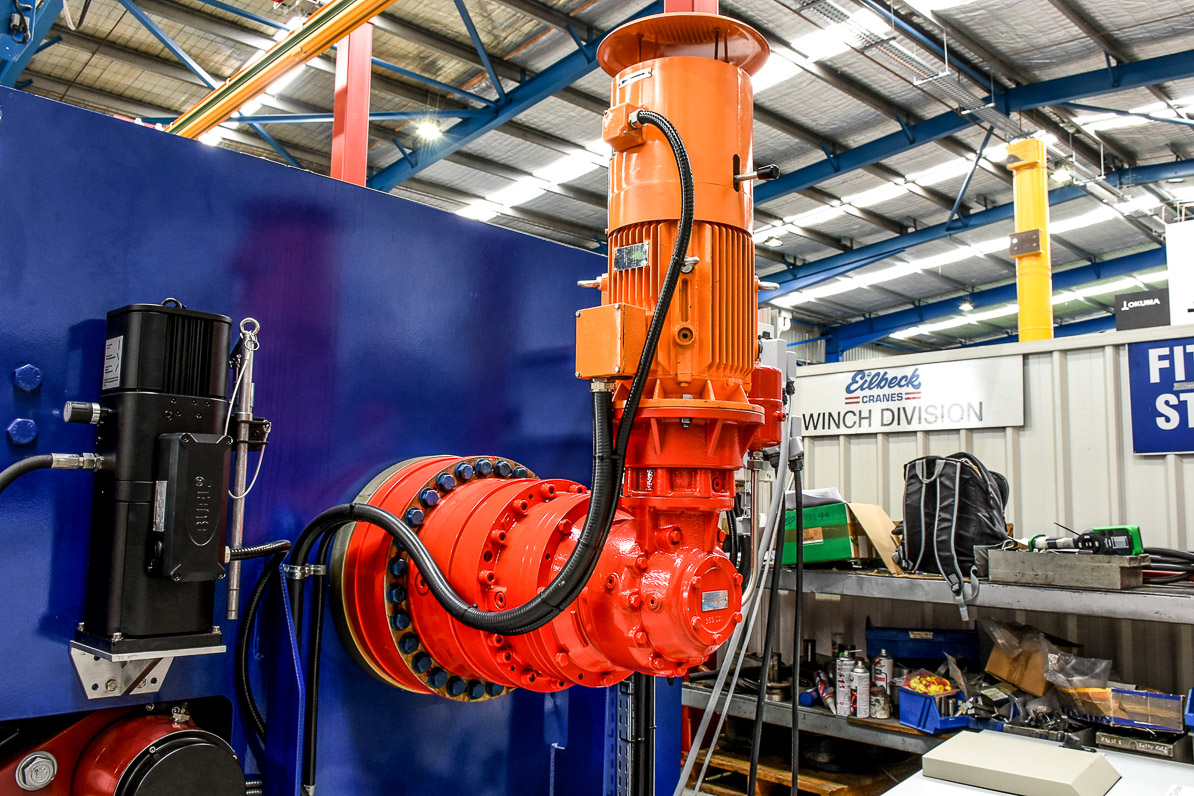

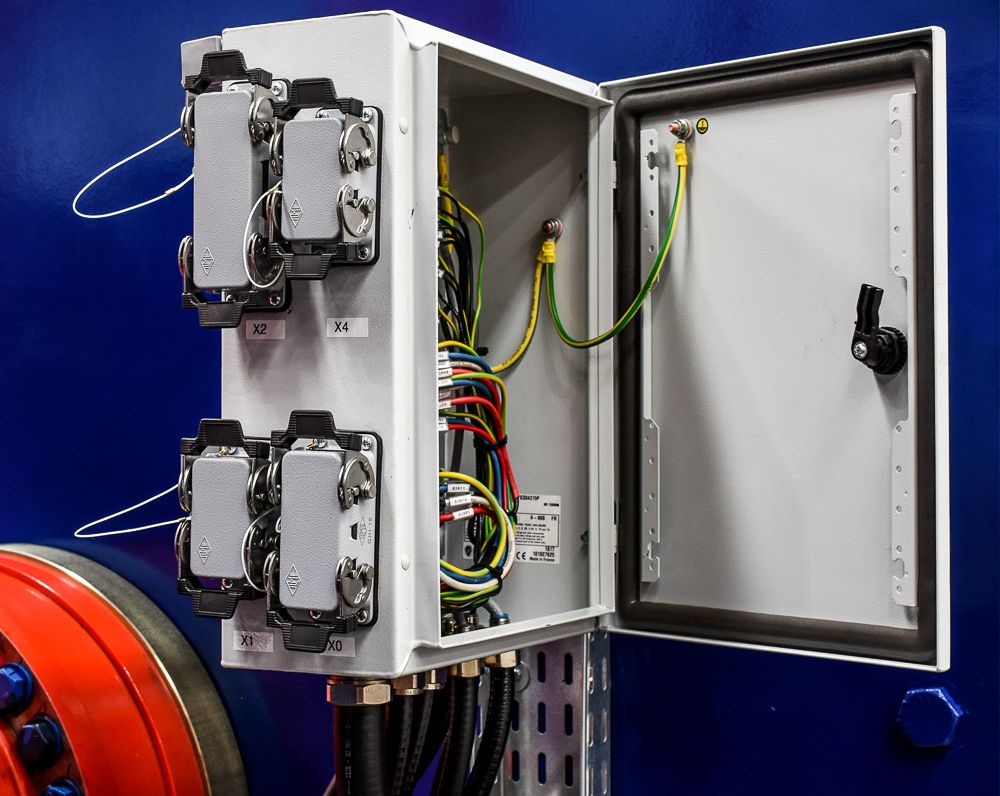

The man riding system consisting of 2 identical electric winches with the following specs:
- 15t line pull per winch

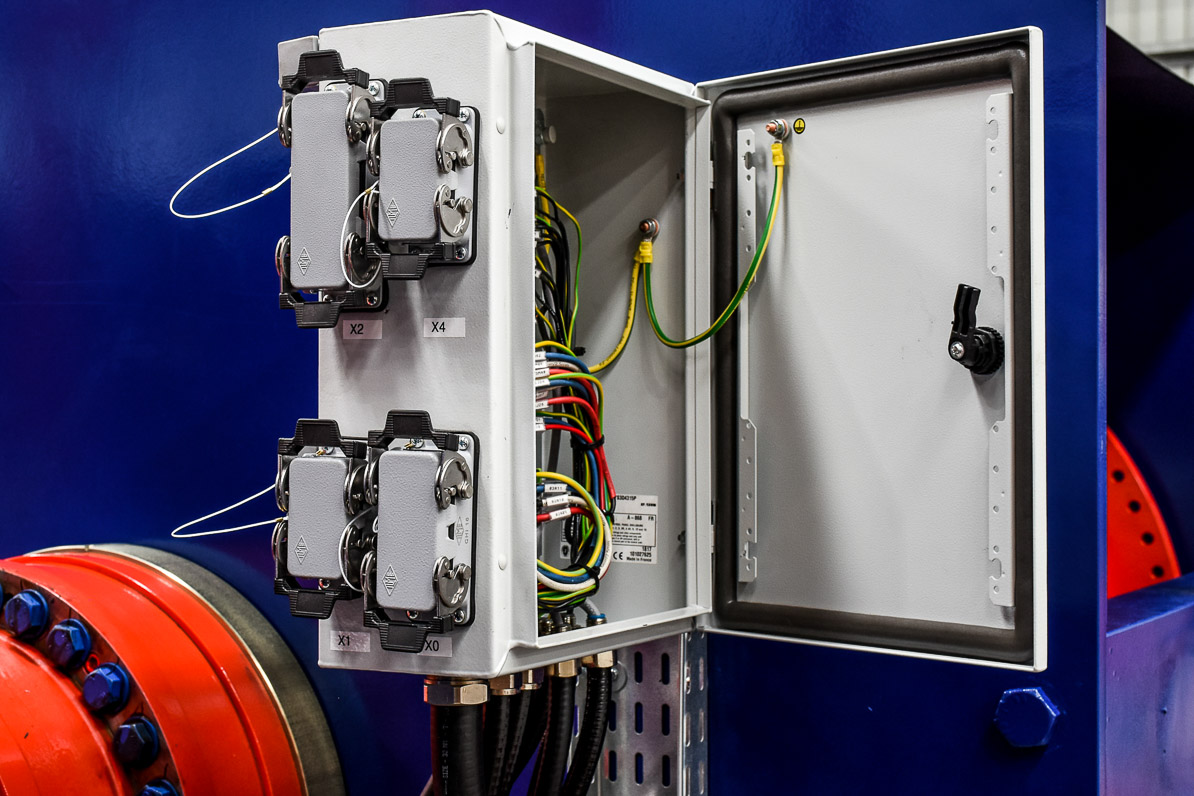

- Radio remote control
- Man riding to 6t per winch
- Total travel length 120m

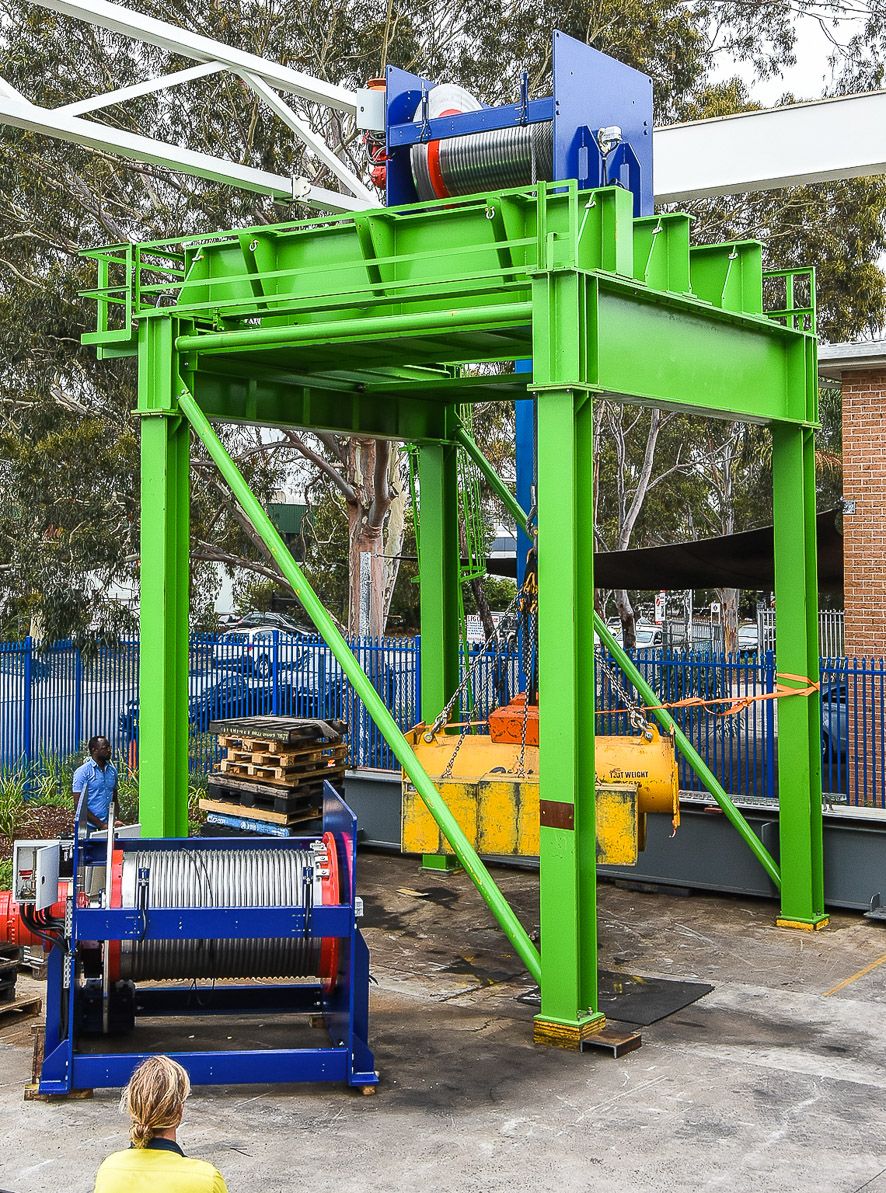

Winches were tested at 8.5 tonnes capacity for the full 60m travel at this line pull and the 15 tonnes at intermittent travelling in increments around 100‐150mm that is to run over extended time periods.

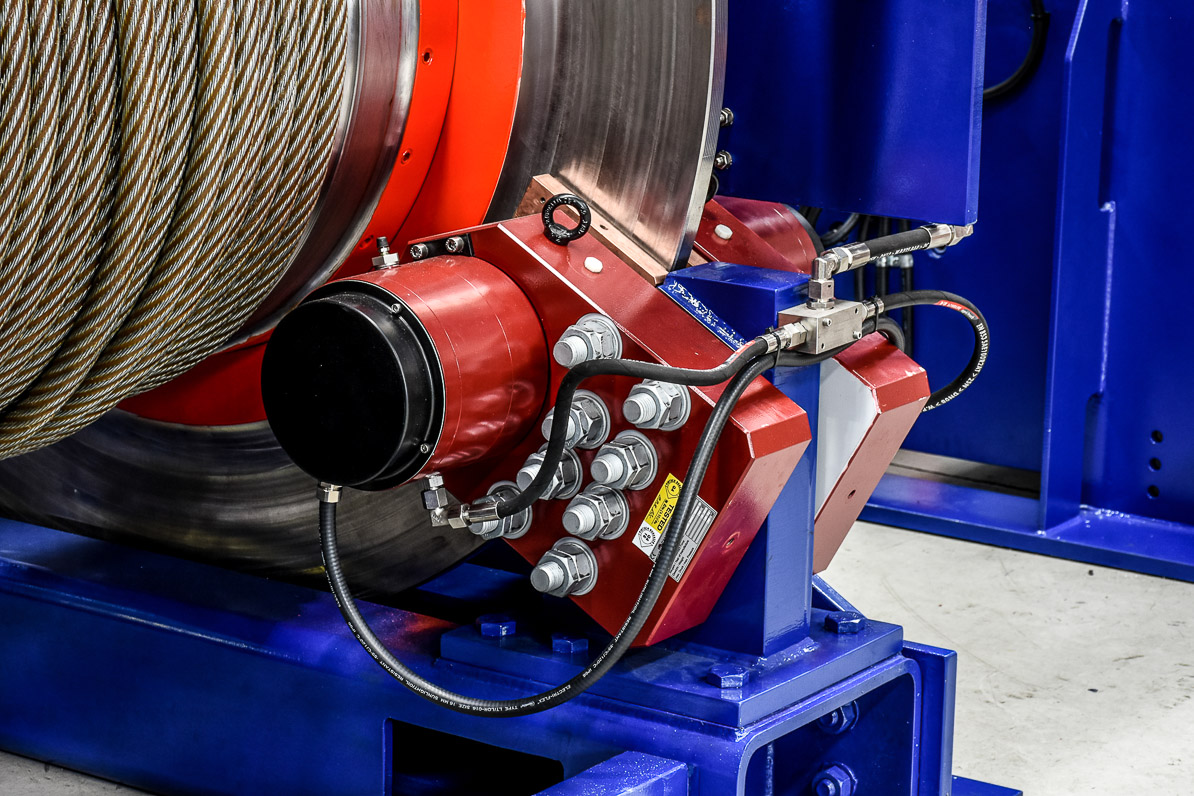

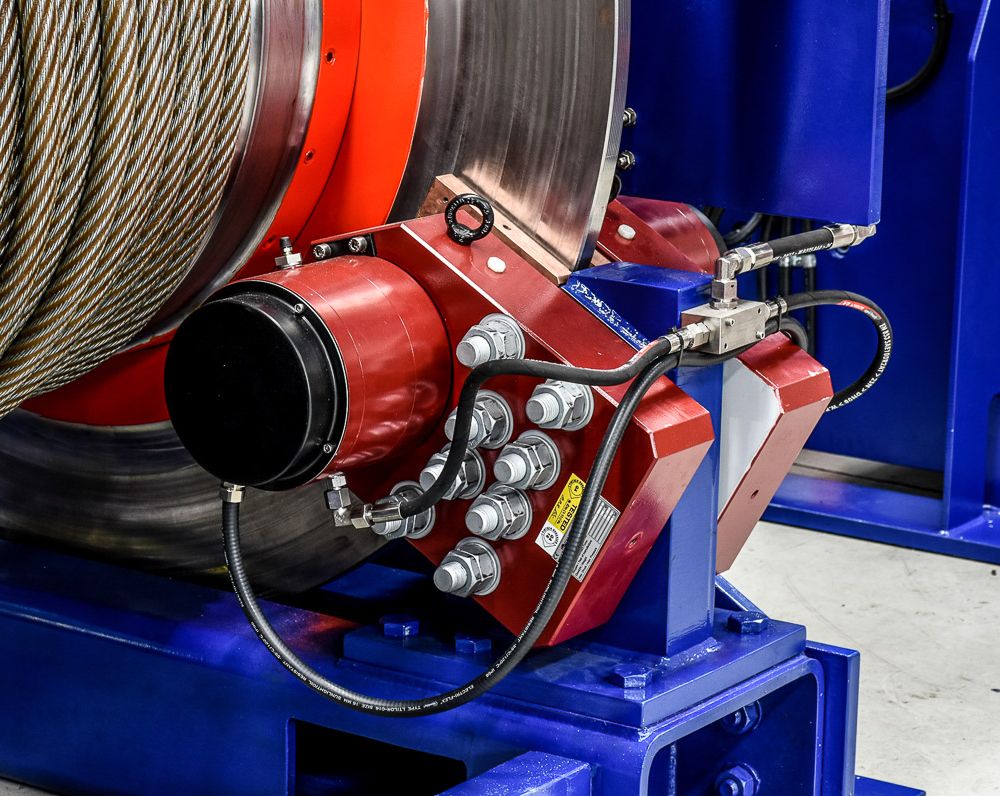

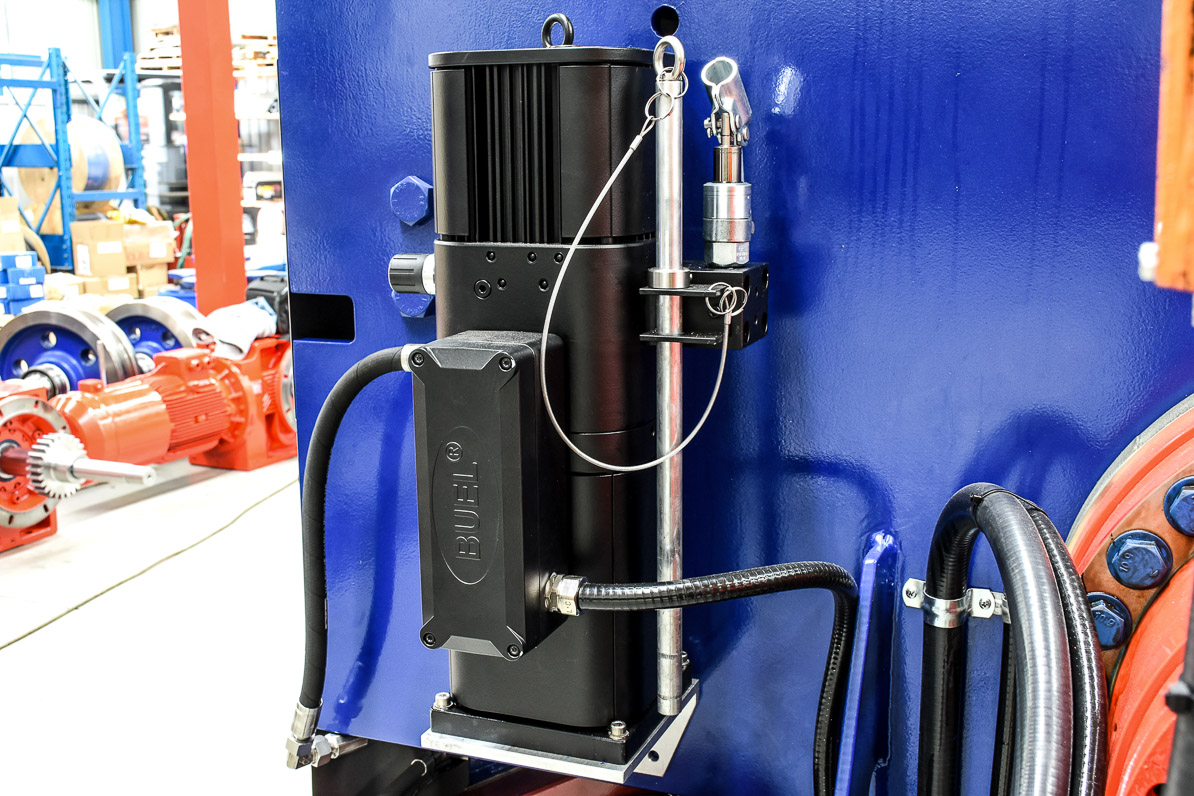

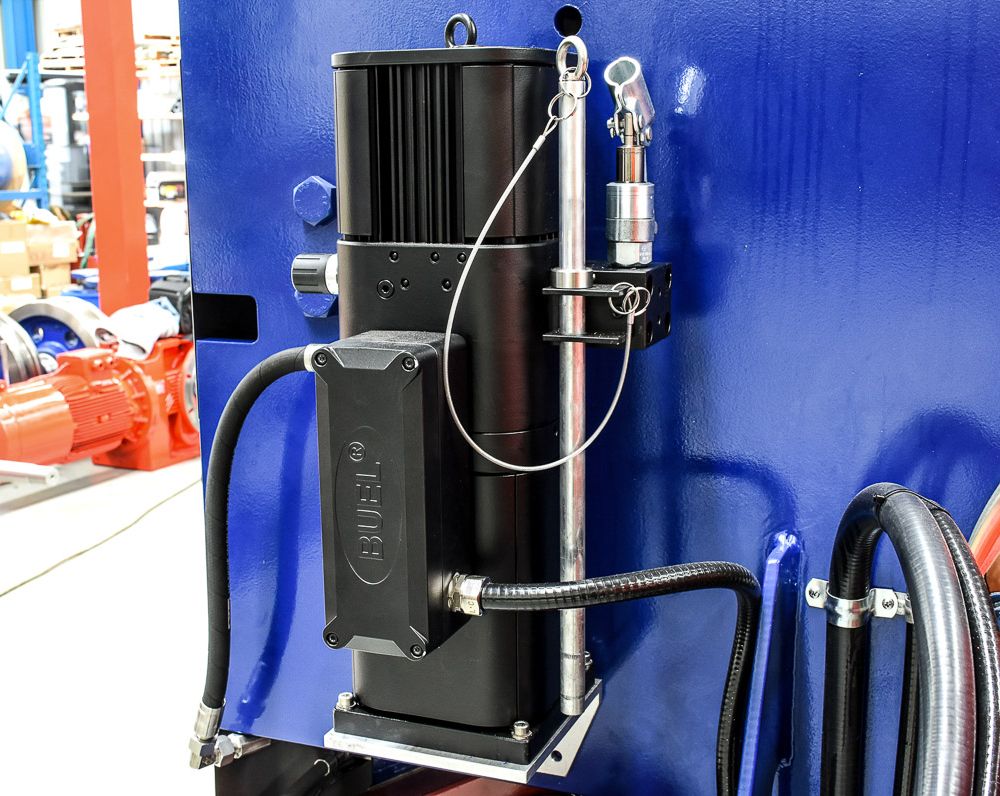

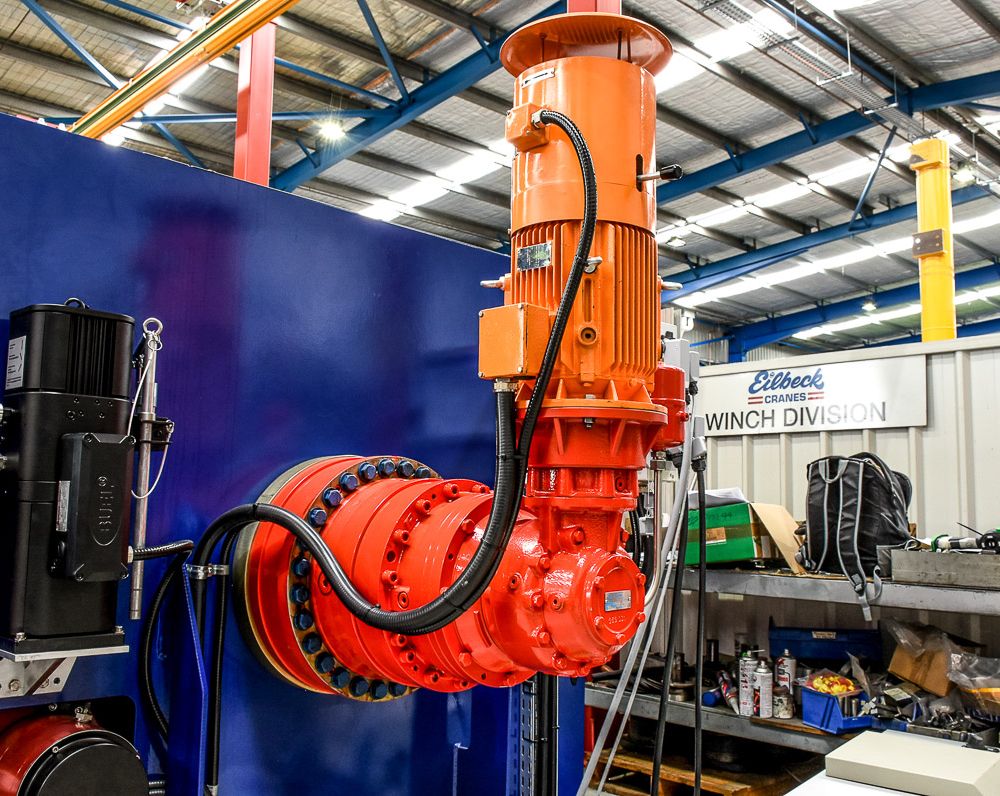

All installed brakes are failsafe so if power is lost for any reason they will be automatically applied.
| WINCHES TECHNICAL DATA | |
| YEAR OF MANUFACTURE............................... | 2018 |
| WINCH MODEL................................................... | EWE.150-2.1/1.80(100).E.1.S |
| MAXIMUM RATED CAPACITY (M.R.C.)....... | 15 tons |
| WINCH SPEED..................................................... | 0.2 m/min |
| WINCH CLASSIFICATION................................ | M4 |
| MOTOR POWER INSTALLED........................... | 7.5 kW |
| SUPPLY VOLTAGE............................................... | 415 VAC 50Hz 3Phase |
| CONTROL VOLTAGE.......................................... | 24 VDC |
| ROPE TOTAL LENGTH........................................ | 100 m |
| ROPE MAX. BREAKING LOAD........................ | 1186 kN |
| ROPE CONSTRUCTION.................................... | 8x26-1960MPa |
| HOIST MASS......................................................... | 7000 kg |
