Modulating Winches
Automatic Take-up Winch
These winch is one of take-up solution that performs keeping the belt tensioned, and being used for maintenance operation. Automatic take-up winch can be considered as the flexible application due to the easy installation and easy handling as the winch operates without take-up tower. The rope will directly connect to the conveyor trolley through the set of sheaves from the winch tensioning the belt with tension monitoring and controlling system.
Benefits
- Cost and Space saving as No need to build take up tower and counterweight
- Preventing accidents related to counterweight lifting
- Easy installation and relocation: simple installation and connection to conveyor trolley
Exampe Modulating Winch

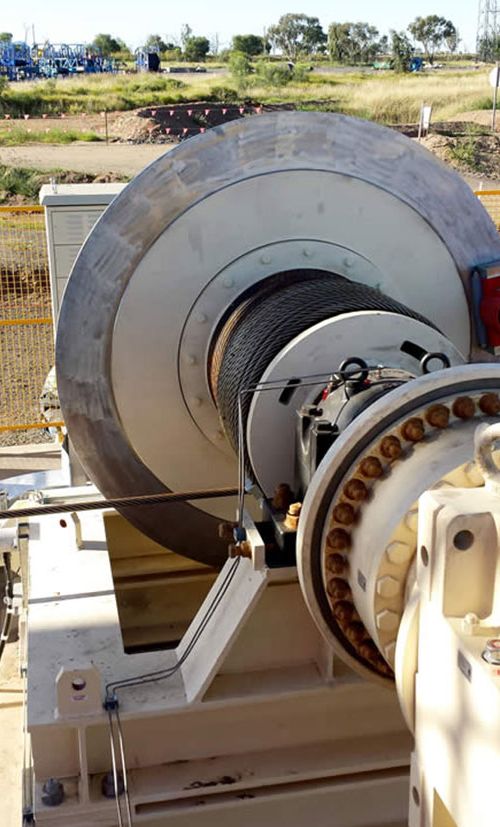

Overland Conveyor Take-up Winch
Highly engineered, high performance winch capable of operating at high torques in dusty and corrosive environment. Winch shall maintain and monitor the rope's tension for compliance with running/starting/stopping operational belt tensions.
Eilbeck Winches
Modulating Winches
Automatic take-up winch can be considered as the flexible application due to the easy installation and easy handling as the winch operates without take-up tower
Take-up Winches
Gravity take-up winch normally operates to lift up the counterweight to relief the belt tension for maintenance or lower counterweight down for maintenance
Counterweight Winches
Usually, a Counterweight Winch is placed close to the counterbalance tower. The rope is connected to the counterbalance block by a hook connected directly to the rope or through a set of pulleys.
Hydraulic Winches
Hydraulic winches perform in the harsh environments often encountered in mining applications. And these winches with safety features such as automatic brake, emergency stop button, Pawl brake, drum locking system, and over travel prevention system will provide maximum protection.
Open Winches
Designed for lifting heavy loads, equipment lifting, these electric winches feature modular design with the purpose of meeting the specific demands of the customer
Luffing Winches
Luffing Winches are designed for use on a boom to be lifted and lowered. The winches are designed with high speed brake on motor and low speed brake on drum for emergency and fail-safe conditions. In addition, Eilbeck Cranes provides drum locking unit for extra safety during maintenance operation.
Capstan Winches
Designed and manufactured for operation between take up trolleys and counterweights of mine long wall product transfer conveyors.
