Static Conveyor Take-Up Winches

Project Ref: 41621
Client: Thiess Sedgman JV
Project: Dawson Alliance Project

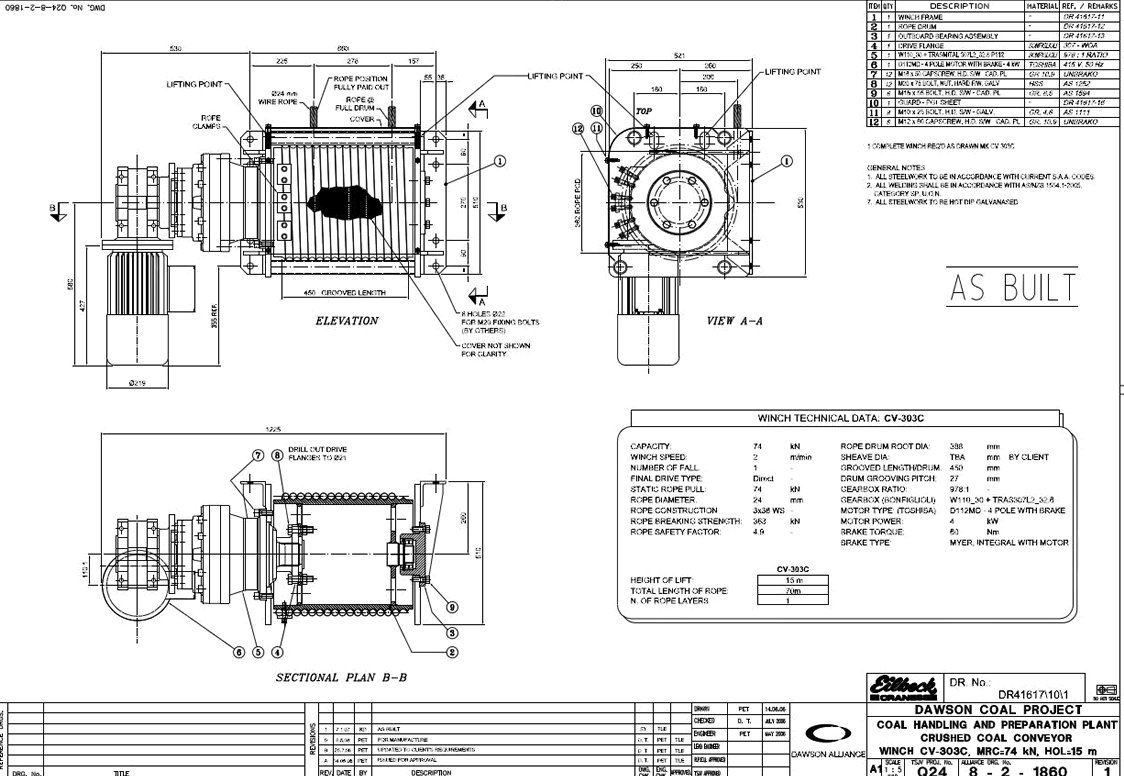

Scope: 5 off 7.5t Static Conveyor Take-Up Winches


No images were found.

Technical Data


Capacity: 7.5 tonne

Line pull (layer): 74kN

Line speed (layer): 2m/min

Drum rope storage capacity: 15m

Number of layers: 1

Crane classification: AS 1418, class M2

Drum diameter: 387mm

Drum width: 450mm

Guarding to AS4024.1/AS1755: Galvanised Guard

Wire rope type: Seale Warrington

Wire rope diameter: 24mm

Construction: 6 x 36SW

Total length: 70m

Standard: AS 1418

Minimum breaking strength: 363kN

Min. factor of safety (Static): 3.35:1

Min. factor of safety (Dynamic): N/A

Electric motor power: 4kW

Speed range: 1450 (50Hz) rpm

Output torque - (FLT): 26:9 Nm

Mounting arrangement: Flange

Ingress Protection rating: IP56 Motor

Static brake hold torque: 60Nm

Total winch weight: 1800kg
